Page 19 - Maestro Release – Sep 2021

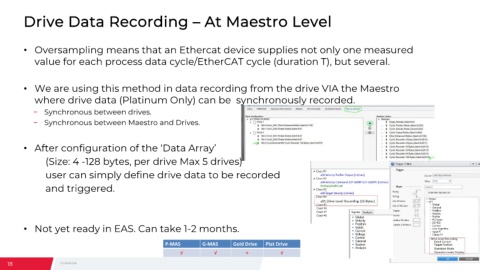

Drive Data Recording – At Maestro Level

• Oversampling means that an Ethercat device supplies not only one measured

value for each process data cycle/EtherCAT cycle (duration T), but several.

• We are using this method in data recording from the drive VIA the Maestro

where drive data (Platinum Only) can be synchronously recorded.

− Synchronous between drives.

− Synchronous between Maestro and Drives.

• After configuration of the ‘Data Array’

(Size: 4 -128 bytes, per drive Max 5 drives)

user can simply define drive data to be recorded

and triggered.

• Not yet ready in EAS. Can take 1-2 months.

P-MAS G-MAS Gold Drive Plat Drive

√ √ × √
