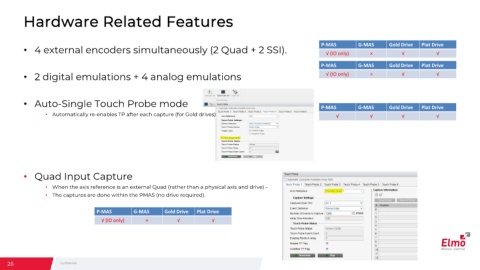

Page 27 - Maestro Release – Sep 2021

Hardware Related Features

• 4 external encoders simultaneously (2 Quad + 2 SSI). P-MAS G-MAS Gold Drive Plat Drive
√ (IO only)
×
√
√
P-MAS G-MAS Gold Drive Plat Drive

• 2 digital emulations + 4 analog emulations √ (IO only) × √ √

• Auto-Single Touch Probe mode P-MAS G-MAS Gold Drive Plat Drive

• Automatically re-enables TP after each capture (for Gold drives) √ √ √ √

• Quad Input Capture

• When the axis reference is an external Quad (rather than a physical axis and drive) -

• The captures are done within the PMAS (no drive required).

P-MAS G-MAS Gold Drive Plat Drive

√ (IO only) × √ √

26 Confidential
