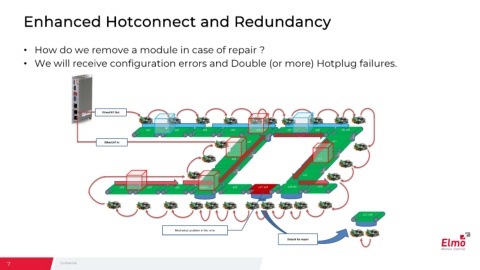

Enhanced Hotconnect and Redundancy
• How do we remove a module in case of repair ?
• We will receive configuration errors and Double (or more) Hotplug failures.
EtherCAT Out
a01 a02 a03 a04 a05, a06 a07 a08 a9, a10
EtherCAT In a27 a11
a26 a12
a25 a13
a24 a23 a22 a20,a21 a19 a17, a18 a15a16 a14
a17, a18
Mechanical problem in the roller
Detach for repair
